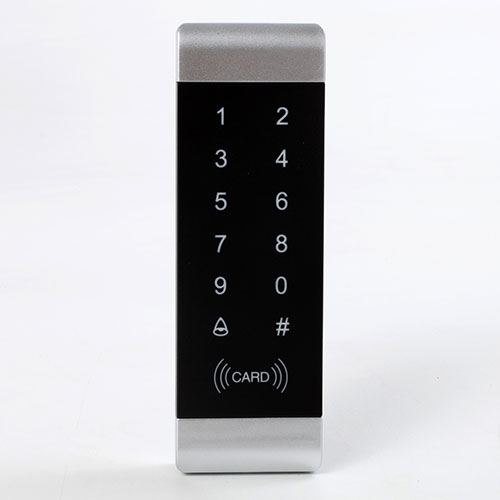

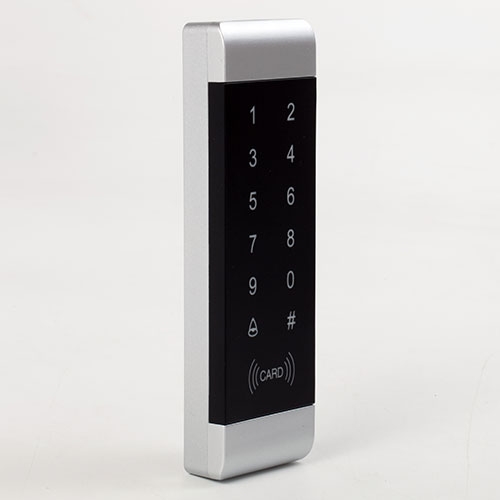

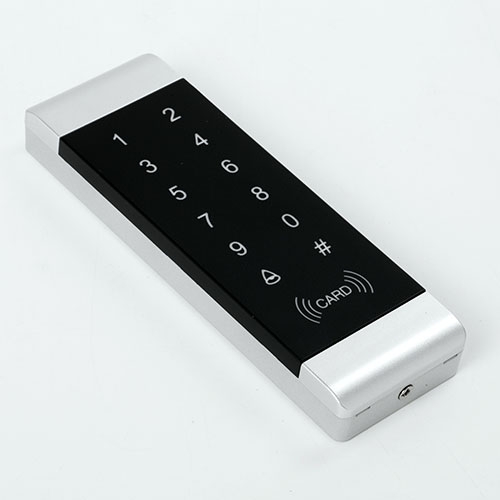

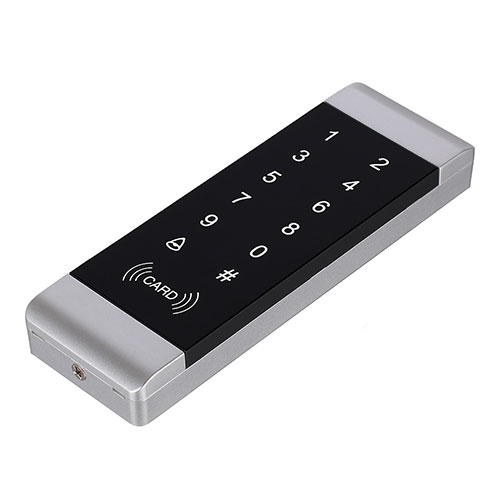

Slim 125khz & 13.56mhz RFID proximity reader standalone access control system RF-Y7

* Two sets of signal output separately ,a set of high level output signal and a set of electric lock driving signal

* A group of exit button interface; a group of doorbell interface

* Frenquecy: 125KHZ or 13.56MHz

* Full programming from the keypad ,easy to install and program

* 1000 users, supports Card, PIN, Card + PIN

* Can be used as a standalone keypad

* Wiegand 26 input for connection to external reader

* Wiegand 26 output for connection to a controller

* Backlight keys

* User-friendly and adaptable interface

* Easy of use to add and remove access

* Very low power consumption (30mA)

* Lock output current short circuit protection

* Built in buzzer

* Red and Green LEDS display the working status

* Installation, training, and ongoing maintenance and support
