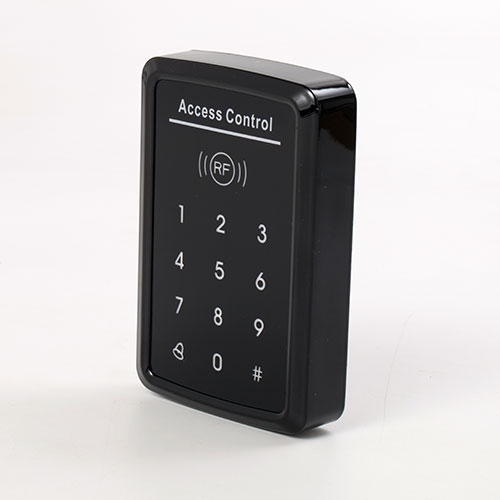

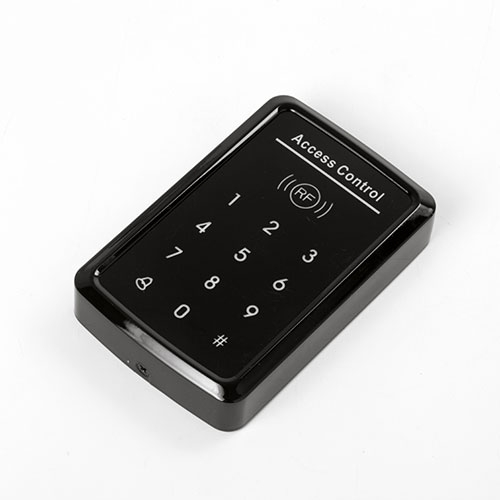

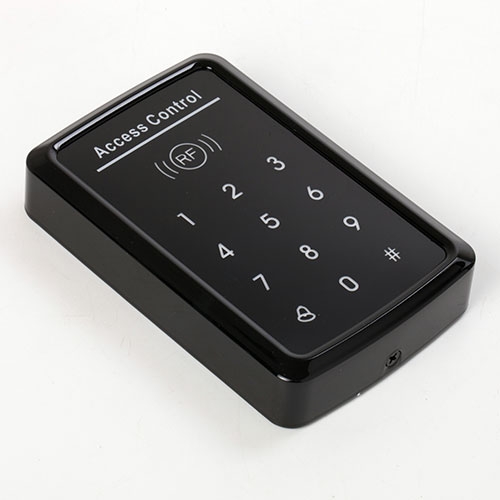

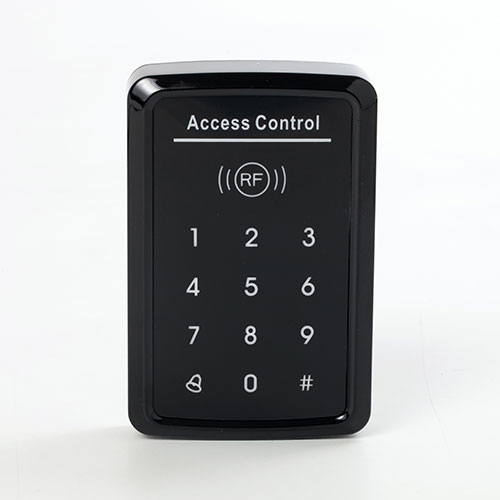

Wholesales WG26 Output Proximity 125KHz &13.56MHz Rfid Access Control Security System RF-Y20

RF-Y20 is a keypad and proximity standalone access control . Both methods of input can be used separately or in combination for extra security. Its slim profile, modern aesthetics and durable construction make it fantastic and secure on any wall especially with its anti-tamper feature. All programming can be done at the reader itself making installations quick and easy without the need for a PC.The device can be used as a standalone access control system simply by adding a 12V power supply and door release or it can be used to upgrade an existing system.

Detailed description

* UV polished shell

* Full programming from the keypad ,easy to install and program

* 1000 users, supports Card, PIN, Card + PIN

* Can be used as a standalone keypad

* Wiegand 26 input for connection to external reader

* Wiegand 26 output for connection to a controller

* User-friendly and adaptable interface

* Easy of use to add and remove access

* Backlight keys

* Very low power consumption (30mA)

* Built in buzzer

* Red and Green LEDS display the working status

* Installation, training, and ongoing maintenance and support

Model No.	RF-Y20
Frequency	125 kHz
Interface	Wiegand26 input, can connect external reader
PIN length	3-6 digits
Material	ABS
Size	1207822 mm
Operating temperature	-20 - 70°C
Operating humidity	20% - 90%
