Factory price touch keypad standalone RFID door access control system RF-Y6

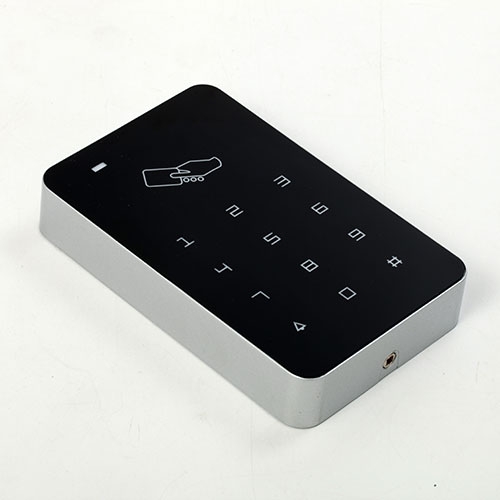

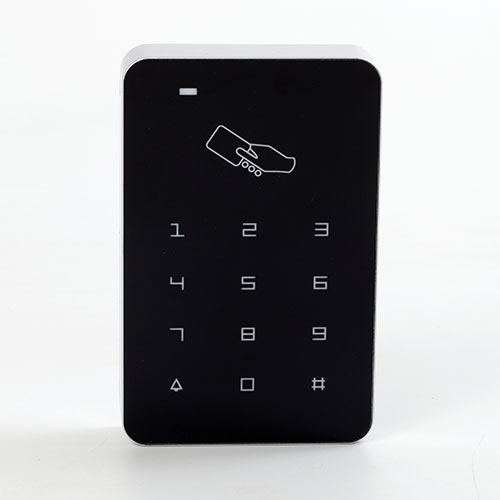

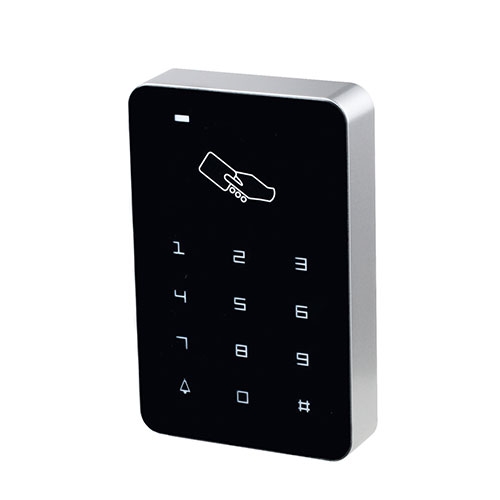

RF-Y6 is a keypad and proximity standalone access control . Both methods of input can be used separately or in combination for extra security. Its slim profile, modern aesthetics and durable construction make it fantastic and secure on any wall especially with its anti-tamper feature. All programming can be done at the reader itself making installations quick and easy without the need for a PC.The device can be used as a standalone access control system simply by adding a 12V power supply and door release or it can be used to upgrade an existing system.

Detailed description

* Plastic shell (Touch panel)

* 1000 users capacity (Upgradeable to 4000 users), supports Card, PIN, Card + PIN

* Wiegand 26 input for connection to external reader

* Wiegand 26 output for connection to a controller

* Relay output and low electric level output

* Reading distance: 10-50mm

* Full programming from the keypad ,easy to install and program

* Can be used as a standalone keypad

* Backlight keys

* Easy of use to add and remove access

* Very low power consumption (<100mA)

* Red and Green LEDS display the working status

* Card type: EM type or MF1(Mifare) type (EM: Standard MF: Optional)

Model No.	RF-Y6
Frequency	125 kHz or 13.56mHz
Interface	Wiegand26 input, can connect external reader
PIN length	3-6 digits
Material	ABS
Size	1177520 mm
Operating temperature	0 - 60°C
Operating humidity	20% - 90%
