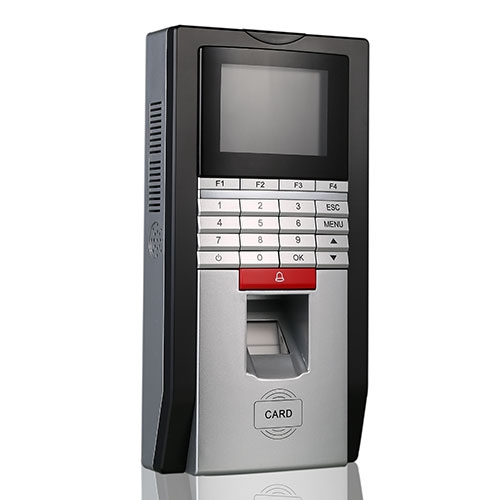

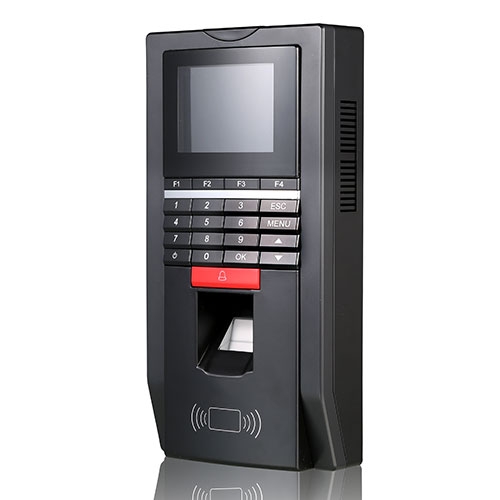

Professional Fingerprint Access Control & Time Attendance RF2-131

RF2-131 is a professional high-end access control device which has RFID card & fingerprint authentication for access control. It's with the leading-edge fingerprint arithmetic in the world, automatically analyzes the tiny difference of the latest fingerprints vs the previous fingerprints and updates accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition.

Detailed description

* Professional fingerprint access control with time attendance function

* Can enroll Max=10 fingerprint to 1 user

* Stores 2,000 templates and 100,000 transactions

* Support Fingerprint/RFID verification/Password

* Built-in Serial and Ethernet ports

* Support Wiegand26/34

* Can control 2 door lock

* Optional function: add to 3,000 templates, MIFARE CARD function

* SDK for OEM customers

Model	RF2-131
Max User Capacity	2,000
Fingerprint Capacity	2,000
Transaction Capacity	100,000
Language	English / Spanish/Portuguese/ German (could customize others)
Push Technology (UDP)	Device Pushes real-time attendance record to the RAMS Software automatically
Display	2.4inch TFT Screen
Fingerprint Sensor	500DPI (Optical)
Hardware Platform	ZDC2911
Algorithm Version	RSFv5.1
Communication	TCP/IP, RS485, USB Memory Disk
Authentication Method	Fingerprint/ RFID Card (125Khz)/Password
Bell	Built-in Timing Bell (Scheduled-bell, can connect to external timing bell)

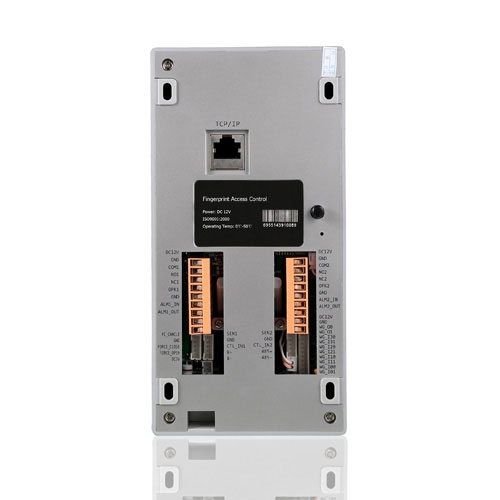

Access Control Interface	Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor
Professional access function	Open door by multilevel verification, anti-pass back
Optional functions	Add to 3,000 templates, MIFARE CARD function
Power Supply	DC 12V/1A
Operating environment	Operating Temp: 0℃-50℃, Humidity:80%
Terminal Size:	181(L)91(W)36(H)mm
Color for choose(Case)	Black, Silver
