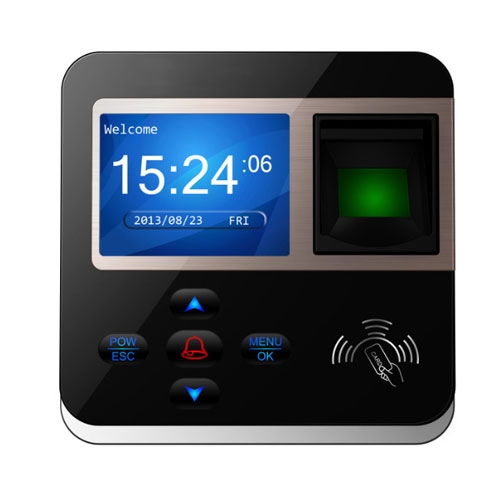

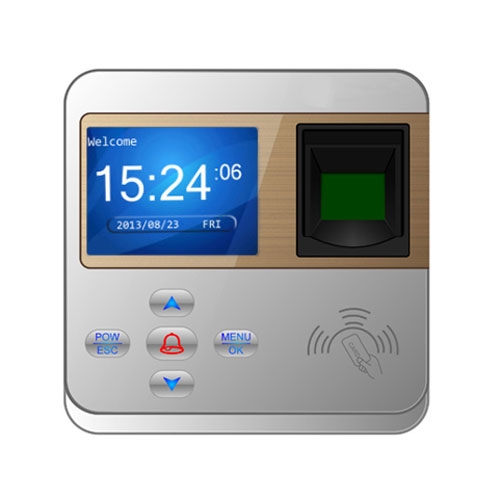

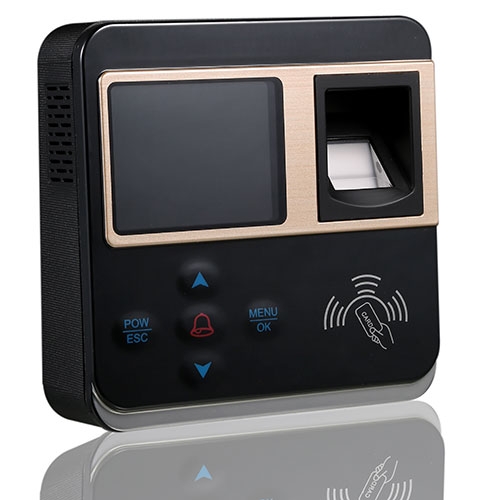

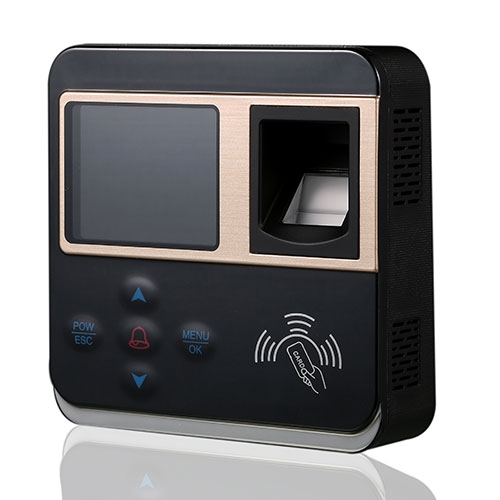

Mini Fingerprint Access Control & Time Attendance RF2-211

RF2-211 is with innovative and compact design, access control and time attendance two in one solution. It supports UDP function, more convenient for monitoring the access records. It's released since September 2013, and it's one of highlight products during CPSE in October 2013.

Detailed description

* Professional fingerprint access control with time attendance function

* 2.4inch TFT screen

* Can enroll Max=10 fingerprint to 1 user

* Stores 800 templates and 50,000 transactions

* Support Fingerprint/RFID verification

* Built-in Serial and Ethernet ports

* Support Wiegand26/34

* Optional function: MIFARE CARD function

* SDK for OEM customers

Model	RF2-211
Max User Capacity	800
Fingerprint Capacity	800
Transaction Capacity	50,000
Language	English / Spanish/Portuguese/ German (could customize others)
Push Technology (UDP)	Device Pushes real-time attendance record to the RAMS Software automatically
Display	2.4inch TFT Screen
Fingerprint Sensor	500DPI (Optical)
Hardware Platform	ZDC2911
Algorithm Version	RSFv5.1
Communication	TCP/IP, RS485, USB Memory Disk
Authentication Method	Fingerprint/ RFID Card (125Khz)
Bell	Built-in Timing Bell (Scheduled-bell, can connect to external timing bell)
Access Control Interface	Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor
Professional access function	Open door by multilevel verification, anti-pass back
Power Supply	DC 12V/1A
Operating environment	Operating Temp: 0℃-50℃, Humidity:80%
Terminal Size	103(L)103(W)31(H)mm
Color for choose(Case)	Black, Silver
