Professional RFID Access Control SC202 & SC202-U
  • Professional RFID Access Control SC202 & SC202-U
  • Professional RFID Access Control SC202 & SC202-U
  • Professional RFID Access Control SC202 & SC202-U

Professional RFID Access Control SC202 & SC202-U

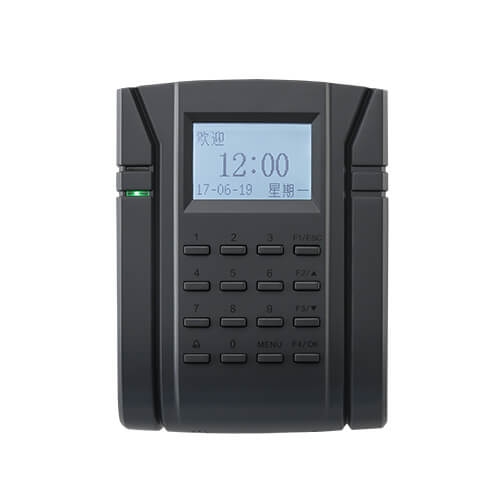

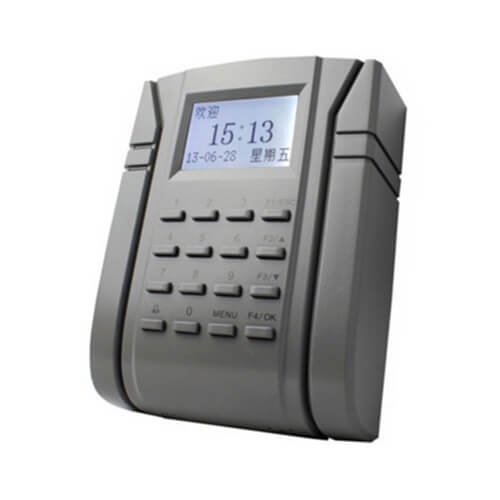

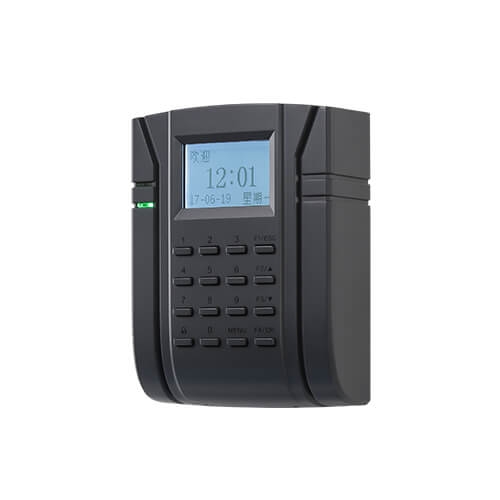

SC202 is a RFID Access Control Terminal enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in residential housing, offices and any other public facilities.
Detailed description

TCP/IP or RS232/485 communication for various networking environments

T9 input, simple and convenient

Multi-languages

Smart and beautiful design, simple and fashion


 ID card Capacity  10,000
 Transaction Capacity  30,000
 Communication  TCP/IP, RS232/485, USB-Host
 Access Control Interface for  3rd party electric lock, door sensor, exit button, alarm, doorbell
 Wiegand Signal  Output & Input、SRB
 Standard Functions  Anti-passback
 Optional Functions  Mifare、Print Function
 Power Supply  DC 12V
 Operating Temperature  0°C ~ 45°C
 Operating Humidity  20% ~ 80%
 Dimension  100*129*40mm
 SDK  Standalone SDK
 Software  ZKAccess3.5
