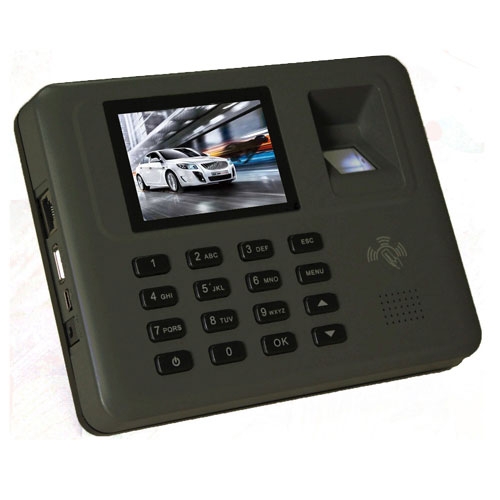

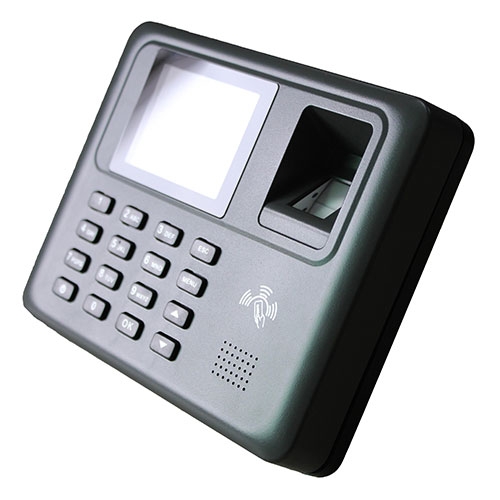

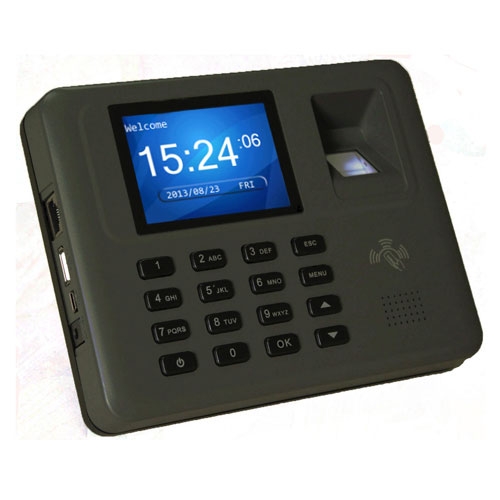

Fingerprint Time Attendance RF2-271

RF2-271 is new model, color screen fingerprint time attendance terminal. It’s ultrathin and with In-Mold Decoration technology, fashionable and elegant. Agents/distributors could customize different front case according to markets requirements, so as to differentiate different markets and realize the maximum market share.

Detailed description

* Standalone fingerprint time attendance + RFID function

* 2.8inch Color TFT screen

* Can enroll Max=10 fingerprint to 1 user

* Stores 1,000 templates and 100,000 transactions

* 11 digit user ID

* Support Fingerprint/Password/RFID verification

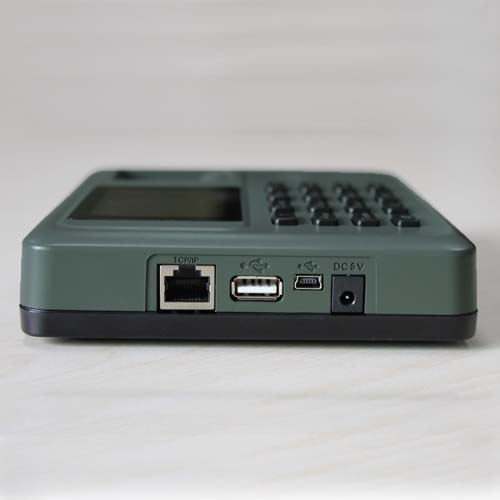

* Built-in Serial and Ethernet ports

* Support USB cable connection for data transfer when network is unavailable

* SDK for OEM customers

Model	RF2-271
Max User Capacity	1,000
Fingerprint Capacity	1,000
Transaction Capacity	100,000
Language	English, Spanish, German (available to customize others)
Push Technology (UDP)	Device Pushes real-time attendance record to the RAMS software automatically
Display	2.8 inch TFT Screen
Fingerprint Sensor	500DPI (Optical)
Hardware Platform	ZDC2911
Algorithm Version	RSFv5.1
Communication	TCP/IP, USB, USB Memory Disk
Authentication Method	Fingerprint/ RFID Card (125Khz)/Password
Bell	Built-in Timing Bell (Scheduled-bell)
Power Supply	DC 5V/0.5A
Operating environment	Operating Temp: 0℃-50℃, Humidity:80%
Terminal Size	169(L)133(W)33(H)mm
